Description
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 1U low profile 30mm
- Optional conformal coating models
- LED indicator for power on

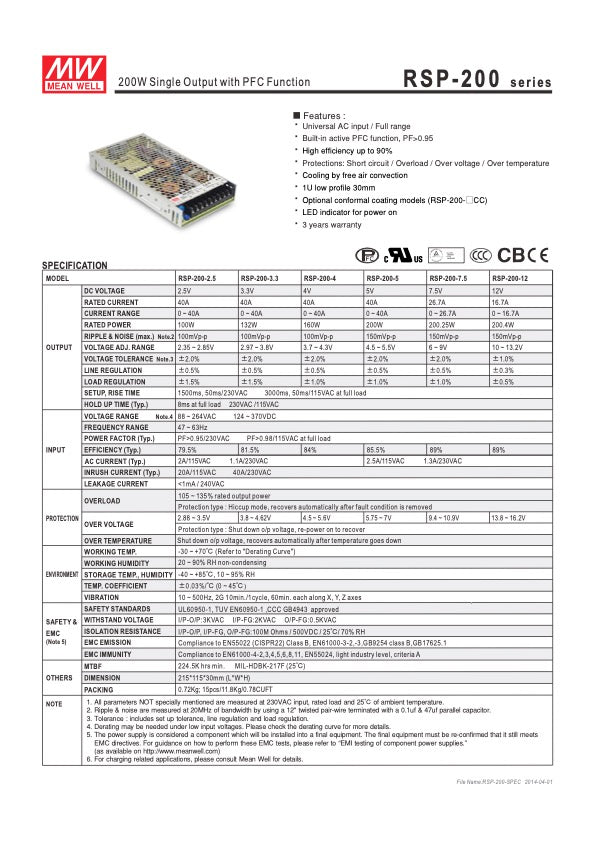

Technical data:
Output voltage: 12 V DC
Output voltage-range: 10 - 13,2 V
Output current: 16,7 A
Power: 200 W
Ripple & Noise: 150 mVp-p
Input voltage: 88 - 264VAC / 124 - 370VDC
Efficiency: 89%
Inrush current, max.: 20A/115VAC / 40A/230VAC
Working temp.: -40 - +85 °C
Dimension: 215 x 115 x 30 mm
weight: 0,72 kg
