Description
The MCTRL300 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x audio input, and 2x Ethernet outputs. A single MCTRL300 supports input resolutions up to 1920×1200@60Hz. The MCTRL300 communicates with PC via type-B USB port. Multiple MCTRL300 units can be cascaded via UART port. As a highly cost-effective controller, the MCTRL300 can be mainly used in the rental and fixed installation applications, such as live events, security monitoring centers, and various sports centers.

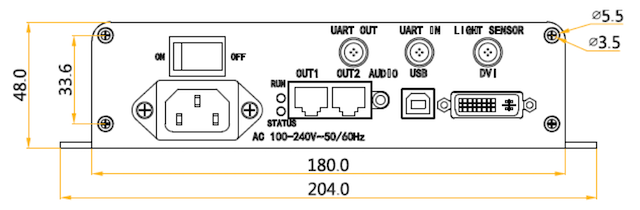

Dimensions: 204 mm × 160 mm × 48 mm
2 types of input connectors
1 x SL-DVI1 x AUDIO
2 x Gigabit Ethernet output
1 x light sensor connector
1 x type-B USB control port
2x UART control ports
20 devices can be cascaded.Pixel level brightness and chroma calibration. Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
